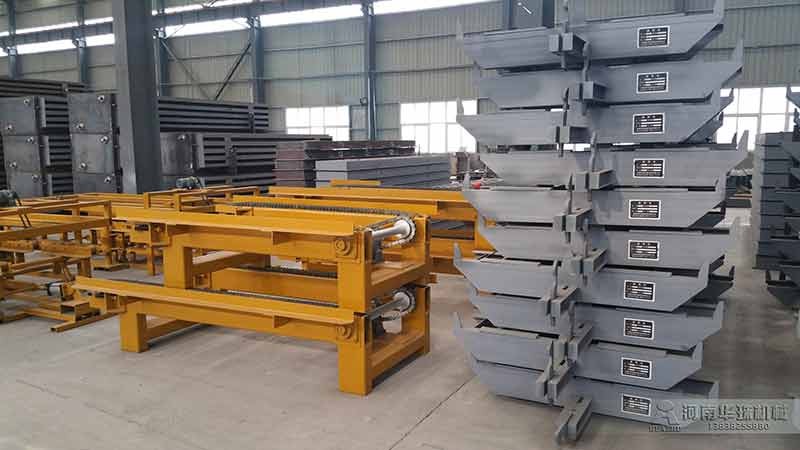

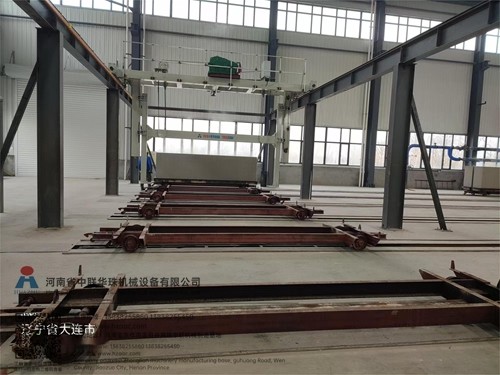

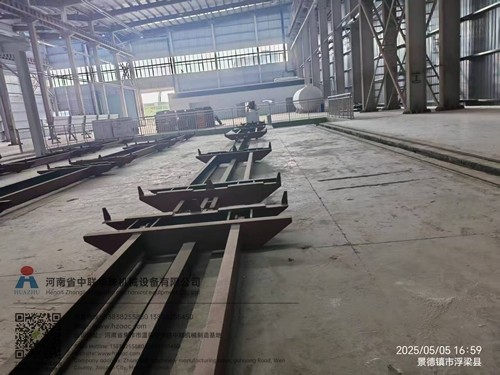

AAC Autoclave Curing Cart

The AAC autoclave curing cart is an important transportation unit in an AAC block and panel production line. It is mainly used to carry cut AAC products into the autoclave for high-temperature and high-pressure steam curing and to transport the finished products out after curing.

The cart runs on a dedicated rail system and works together with the autoclave, transfer equipment and loading system. Stable operation and reliable load-bearing capacity are essential for safe and continuous AAC production.

Main Functions

• Transport cut AAC blocks or panels into the autoclave
• Support the products during steam curing
• Transfer cured products out of the autoclave
• Connect the cutting, autoclaving and unloading processes
• Improve production continuity and handling efficiency

Main Features

• Heavy-duty welded steel structure
• High load-bearing capacity
• Stable operation on the rail system
• High-temperature-resistant bearing components
• Reliable connection with the transfer system
• Easy inspection and maintenance
• Customized dimensions according to autoclave specifications

Working Process

1. The cut AAC cake is loaded onto the autoclave curing cart.
2. The cart is moved along the rail to the autoclave loading area.
3. The loaded carts are pushed into the autoclave.
4. The AAC products undergo high-pressure steam curing.
5. After curing, the carts are pulled out for unloading and packaging.

Equipment Structure

The AAC autoclave curing cart normally consists of a welded steel frame, wheel assemblies, bearings, connecting components and load-supporting structures.

The frame is designed to withstand repeated high-temperature curing cycles and heavy product loads. Wheel alignment and rail compatibility are important for smooth movement and safe operation.

Maintenance Requirements

• Regularly inspect wheels and bearings
• Remove accumulated dust and production residue
• Check frame deformation and welding conditions
• Use suitable high-temperature lubricating grease
• Inspect rail alignment and connection points
• Replace worn components in time

Customized AAC Autoclave Cart

Huazhu Machinery can design AAC autoclave curing carts according to the customer’s autoclave diameter, rail gauge, product size, load requirements and production capacity.

The cart can be supplied as part of a complete AAC block or panel production line together with autoclaves, cutting equipment, transfer systems and automatic control systems.
