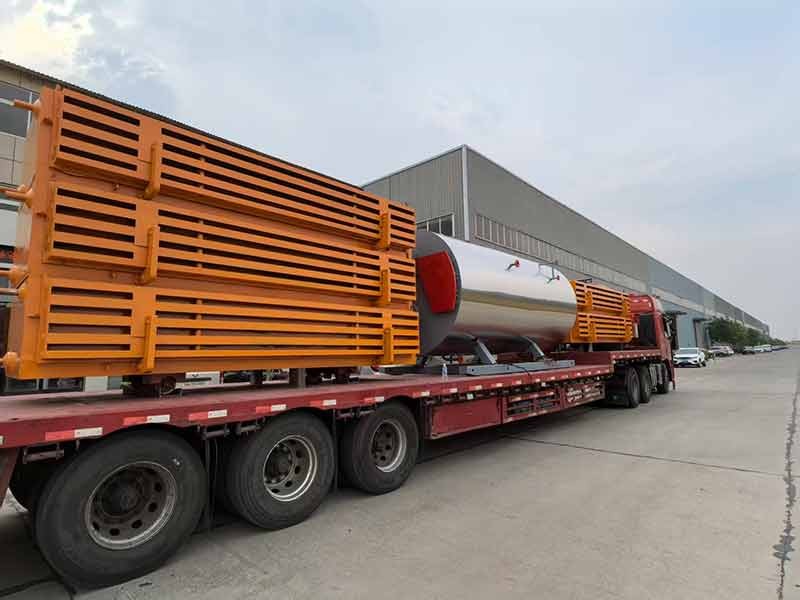

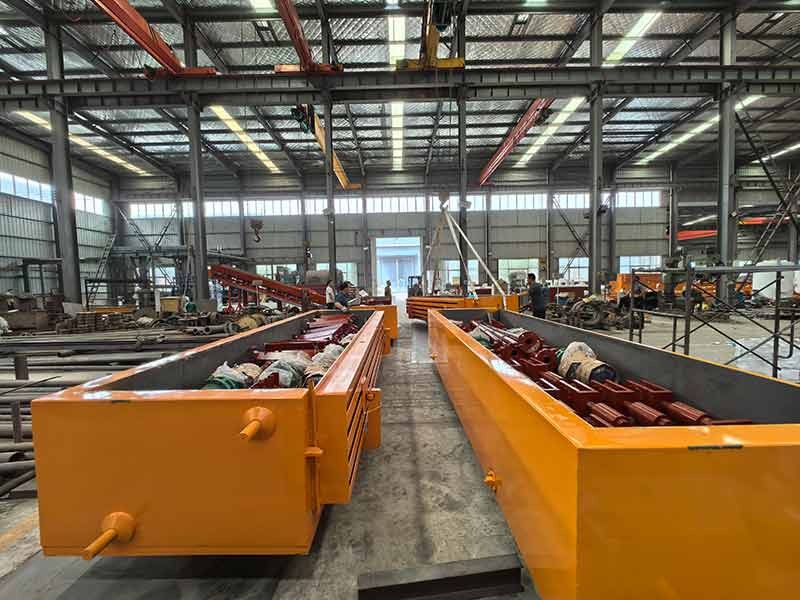

AAC Mould Side Plate

The AAC mould side plate is an important component of the mould and transfer system in an AAC block and panel production line. It works together with the mould box during casting and pre-curing and supports the green cake during demoulding, cutting, autoclaving and product transfer.

A stable and accurately manufactured side plate helps maintain the shape of the green cake, reduces deformation and improves production continuity.

Main Functions

• Work together with the mould box during casting
• Support the AAC green cake during demoulding
• Carry the green cake through the cutting process
• Support products during autoclave curing
• Connect moulding, cutting, curing and unloading processes

Main Features

• Heavy-duty welded steel structure
• High dimensional accuracy
• Strong load-bearing capacity
• Stable operation on the transfer system
• Resistance to repeated production cycles
• Easy cleaning and maintenance
• Customized dimensions for different mould sizes

Working Process

1. The side plate is assembled with the mould box.
2. AAC slurry is poured into the mould for aeration and pre-curing.
3. After the green cake reaches sufficient strength, the mould is transported to the demoulding area.
4. The tilting hoist overturns the mould and green cake.
5. The mould box is removed while the side plate supports the green cake.
6. The side plate carries the cake through cutting and autoclaving.
7. After curing, the finished products are unloaded and the side plate returns to production.

Role in the AAC Mould System

The side plate is not only a supporting component. It is also an important transportation carrier in the complete AAC production process.

It must match the mould box, tilting hoist, cutting machine, autoclave cart and transfer system. Accurate dimensions and reliable structural strength are essential for smooth operation.

Why Side Plate Quality Matters

Poorly manufactured side plates may cause uneven support, green cake deformation, transfer instability or difficulty during mould assembly.

A high-quality AAC mould side plate helps improve:

• Green cake stability
• Cutting accuracy
• Transfer safety
• Equipment compatibility
• Finished-product quality
• Production-line efficiency

Customized AAC Mould Side Plates

Huazhu Machinery can manufacture AAC mould side plates according to the customer’s mould dimensions, product size, annual capacity, rail system and production-line configuration.

The equipment can be supplied together with mould boxes, tilting hoists, cutting machines, autoclave carts and complete AAC production-line systems.

Maintenance Requirements

• Clean slurry and production residue regularly
• Inspect the steel frame and welding joints
• Check dimensional deformation
• Inspect wheels, guide components and connection points
• Repair damaged surfaces promptly
• Ensure compatibility with the mould and transfer system
