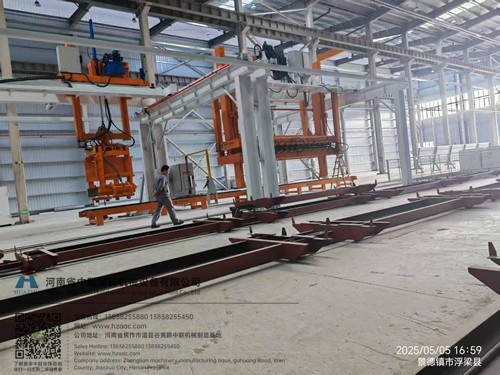

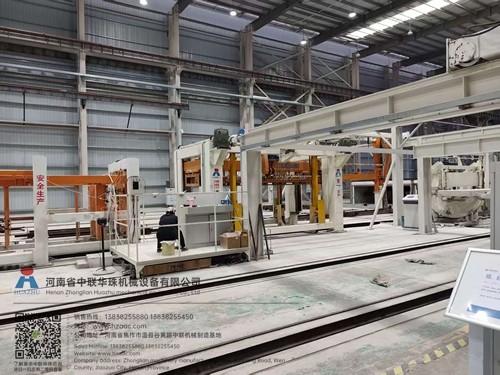

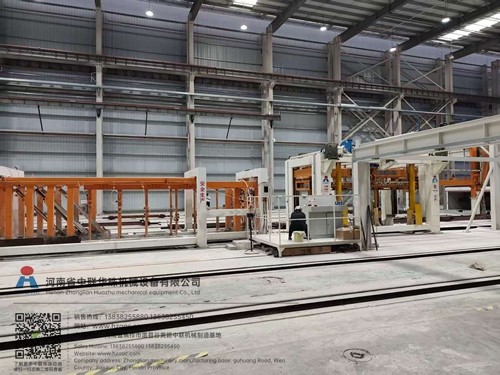

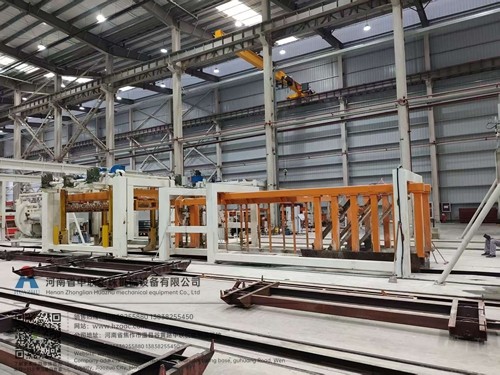

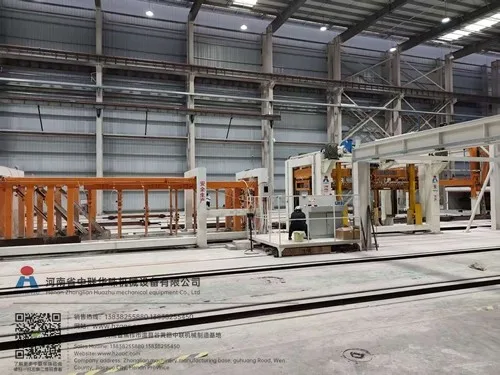

Automatic AAC Cutting Machine

The AAC cutting machine is one of the most important machines in an autoclaved aerated concrete production line. After the green cake completes pre-curing, the cutting system accurately cuts it into the required block or panel dimensions before autoclaving.

The machine performs horizontal cutting, vertical cutting and cross cutting with fine steel wires. Stable cutting accuracy directly affects finished-product dimensions, surface quality, material utilization and construction performance.

Main Functions

• Cut the pre-cured AAC green cake into required sizes
• Perform horizontal, vertical and cross cutting
• Remove top, side and bottom waste material
• Improve block and panel dimensional accuracy
• Connect the pre-curing and autoclaving processes

Main Features

• High cutting accuracy
• Stable and efficient operation
• Low material waste
• Automatic positioning and control
• Adjustable product dimensions
• Suitable for AAC blocks and panels
• Easy operation and maintenance

AAC Cutting Process

1. The pre-cured green cake is transferred from the mold.
2. The cake is positioned on the cutting line.
3. Horizontal steel wires determine product height and thickness.
4. Vertical and cross cutting determine block length and width.
5. Waste material is removed and recycled.
6. The cut cake is transferred to autoclave carts for steam curing.

Advantages of Automatic Cutting

Compared with traditional cutting methods, an automatic AAC cutting machine offers higher accuracy, faster production speed and more consistent product quality.

• Reduces dimensional deviation
• Improves finished-product appearance
• Reduces broken blocks and rejected products
• Lowers labor requirements
• Supports continuous production
• Improves raw-material utilization

Factors Affecting Cutting Quality

• Green cake hardness and pre-curing time
• Steel-wire tension
• Machine alignment
• Cutting speed
• Raw-material consistency
• Regular cleaning and maintenance

If the green cake is too soft, deformation may occur during cutting. If it is too hard, the cutting wires may break or produce rough surfaces. Stable pre-curing and accurate machine adjustment are therefore essential.

Customized Cutting Solutions

Huazhu Machinery can configure AAC cutting machines according to the customer’s product dimensions, annual capacity, factory layout, raw materials and automation requirements.

The equipment can be integrated with mold transfer, demolding, waste recycling, autoclave transportation and automatic control systems as part of a complete AAC Production Line.

Maintenance Requirements

• Check and adjust steel-wire tension regularly
• Clean cutting waste after production
• Inspect guide rails and transmission components
• Lubricate moving parts according to schedule
• Check sensors and limit switches
• Replace worn cutting wires and components promptly
