AAC Tilting Hoist

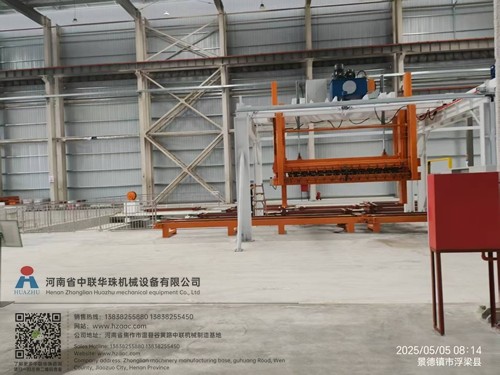

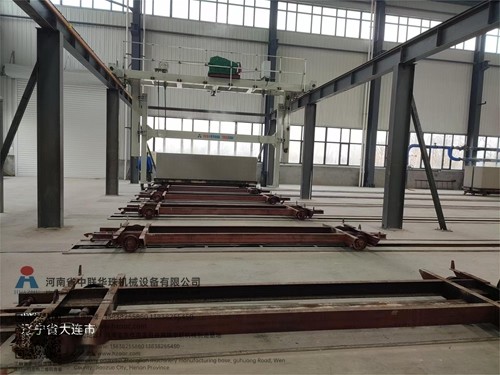

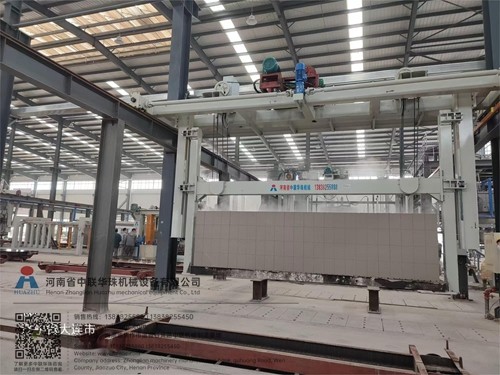

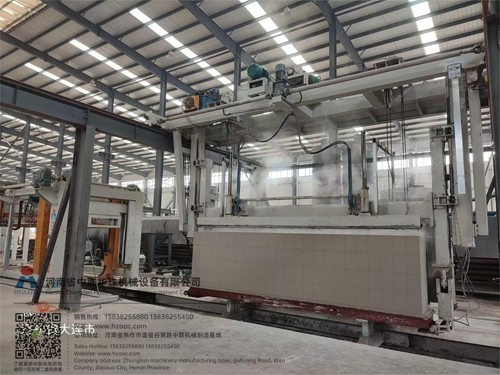

The AAC tilting hoist is a key lifting and overturning device used in AAC block and panel production lines. It lifts the mould and green cake during the demoulding process and rotates them to the required position for cutting and transfer.

Stable movement and accurate positioning help the green cake separate smoothly from the mould without deformation or damage.

Main Functions

• Lift the mould and pre-cured AAC green cake
• Turn the mould and green cake to the required angle
• Assist the demoulding process
• Transfer the green cake to the cutting section
• Improve production safety and handling efficiency

Main Features

• Stable lifting and tilting operation
• Accurate positioning and smooth movement
• Strong lifting capacity
• Reliable mechanical structure
• Reduced risk of green cake damage
• Easy operation and maintenance
• Suitable for AAC blocks and panels

Working Process

1. The mould containing the pre-cured green cake arrives at the demoulding area.
2. The tilting hoist lifts the mould and green cake.
3. The equipment rotates the assembly to the required position.
4. The side plate supports the green cake during mould separation.
5. The green cake is transferred to the AAC cutting machine.

Equipment Configuration

The AAC tilting hoist normally includes a steel lifting frame, travelling mechanism, lifting mechanism, turning mechanism, positioning system and electrical control system.

The equipment can work together with the mould, side plate, cutting machine and transfer system as part of a complete AAC Production Line.

Customized Solutions

Huazhu Machinery can design AAC tilting hoists according to the customer’s mould dimensions, green cake size, lifting weight, production capacity and factory layout.

Maintenance Requirements

• Check wire ropes, chains and lifting components regularly
• Inspect brakes, limit switches and safety devices
• Lubricate bearings and transmission parts
• Check bolts and structural connections
• Clean the equipment after production
• Replace worn parts promptly
